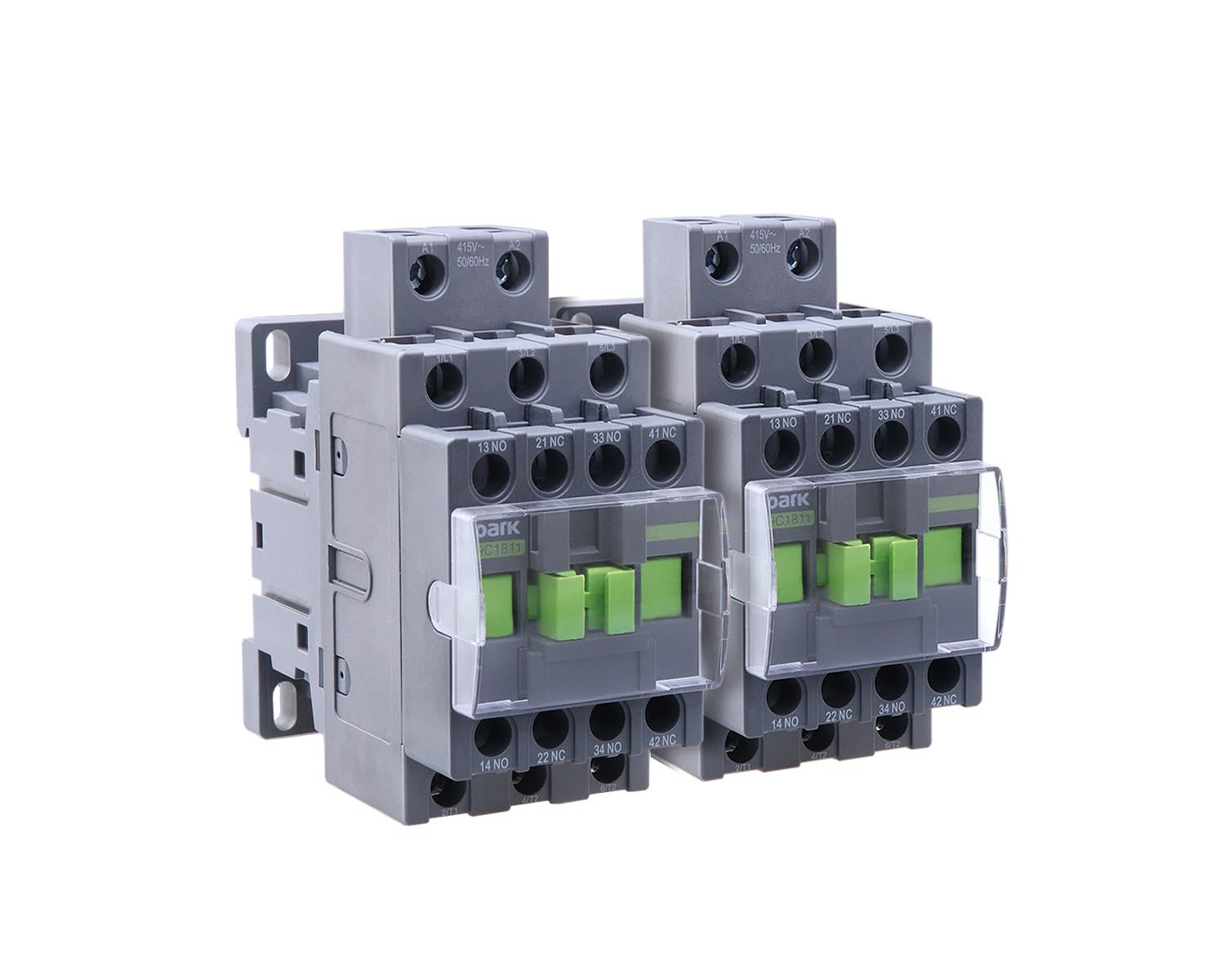

Madenr - Contacteur réversible 3 pôles Ex9CR09 380 VAC 9 A contact auxiliaire 1 NO + 1 NF
Connectez-vous pour accéder au prix et commander
Spécificités essentielles
courant de fonctionnement nominal CA-3, 400 V - 9 A
tension d'alimentation de courant nominal Us à CA 50 Hz - 380...380 V
fonction - contacteur-inverseur
type de tension d'actionnement - AC
puissance de fonctionnement nominale, AC-3, 400 V - 5.5 kW
Emballage et conditions
1 unité(s)
Produit non retournable
EAN
8592765046659
Réf. Sonepar
03054504665
Réf. Fournisseur
104664
Réf. Commerciale
Madenr
courant de fonctionnement nominal CA-3, 400 V
9 A
tension d'alimentation de courant nominal Us à CA 50 Hz
380...380 V
fonction
contacteur-inverseur
type de tension d'actionnement
AC
puissance de fonctionnement nominale, AC-3, 400 V
5.5 kW
indice de protection (IP)
IP20
type de raccordement du circuit principal
autre
Contacteur réversible 3 pôles Ex9CR09 380 VAC 9 A contact auxiliaire 1 NO + 1 NF
Les Atouts de l'article:
Reversible contactors Ex9CR are intended mainly for switching of asynchronnous motors with possibility ofchange of rotation direction. They can also be used for switching of two circuits when it is necessary to ensurethat maximum one circuit is connected.The combinations are equipped with mechanical interlock. Additional electrical interlock of control voltages(e.g. for EN 60204) can be implemented by means of auxiliary contacts AX42 or built-in auxiliary contacts.Splitting into four frame sizes brings optimization of electrical parameters and mechanical dimensions. Allthese frame sizes share full range of accessories. Overload relays Ex9R diff er with the frame sizes in orderto fi t respective contactor of given rated current.The same function can be achieved by combination of two contactors Ex9C with mechanical interlock MIT4.
