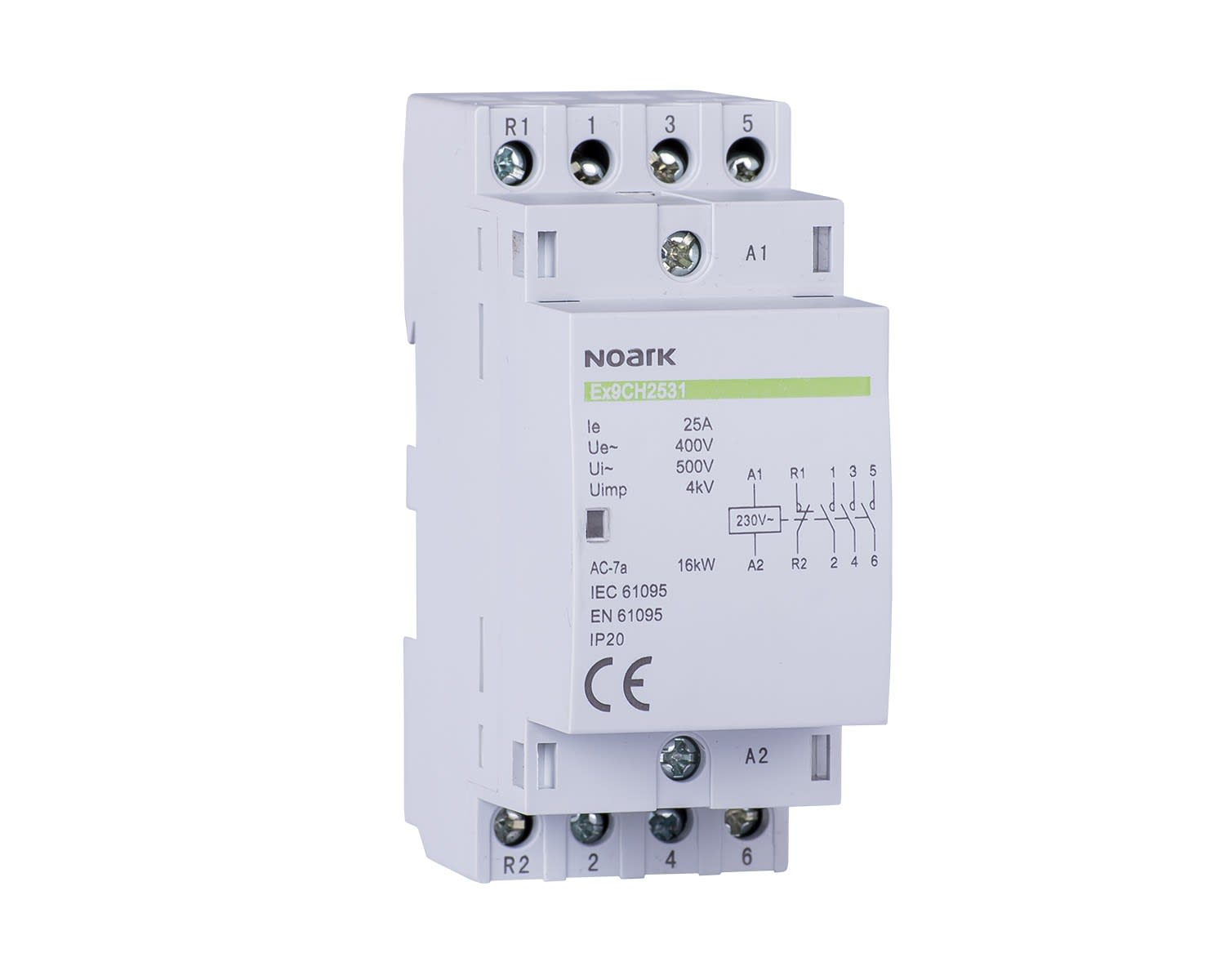

Madenr - Contacteur modulaire EX9CH25 : 3 NO+1 NF, 230 VAC, 25 A, 50/60 Hz, 1 module
Connectez-vous pour accéder au prix et commander
Spécificités essentielles
type de tension de fonctionnement - AC
courant de fonctionnement nominal - 25 A
tension d'actionnement assignée - 230...230 V
produits auxiliaires associables - Non
indice de protection (IP) - IP20
Emballage et conditions
1 unité(s)
Produit non retournable
EAN
8592765070210
Réf. Sonepar
03054507021
Réf. Fournisseur
107020
Réf. Commerciale
Madenr
type de tension de fonctionnement
AC
courant de fonctionnement nominal
25 A
tension d'actionnement assignée
230...230 V
produits auxiliaires associables
Non
indice de protection (IP)
IP20
profondeur d'encastrement
67.5 mm
tension de fonctionnement normale
230...400 V
catégorie d'utilisation
1
curseur pour commutation manuelle
Non
type de tension d'actionnement
AC
Contacteur modulaire EX9CH25 : 3 NO+1 NF, 230 VAC, 25 A, 50/60 Hz, 1 module
Les Atouts de l'article:
Modular contactors Ex9CH are suitable for household and building modular distribution boards. They aremainly used in building automation processes for switching and controlling lightings, heating systems, ventilations,pumps, heating pumps and other applications.Optical indicator on the front side indicates status of the contacts and voltage on control coil.
